Interface |
6MM Inner conic |
QTY |
6000pcs/ctn |
G.W. |
13.2kg |
MEAS |
43*35*33CM |
G Type Refractive Atomizing Micro Sprinklers are a type of irrigation equipment that is widely used in agriculture, landscaping, and gardening. G Type Refractive Atomizing Micro Sprinklers feature a refractive atomizing design that produces a fine mist of water droplets. The water droplets are refracted by the sprinkler, resulting in uniform distribution across the area being irrigated. This design ensures that water is distributed evenly, reducing water waste and the risk of crop damage.
G Type Refractive Atomizing Micro Sprinklers are versatile and can be used in a variety of applications, including agricultural fields, landscaping, and gardening. They are can help improve crop yield by providing moisture levels to crops. The fine mist produced by these sprinklers is easily absorbed by plants, resulting in healthier growth and better yields, and suitable for irrigating small to medium-sized areas and can be adjusted to meet the specific watering needs of different crops and plants.
G Type Refractive Atomizing Micro Sprinklers are easy to install and can be attached to a standard garden hose or irrigation system. Installation can be either normal or upside down.
![]() |
![]() |
![]() |

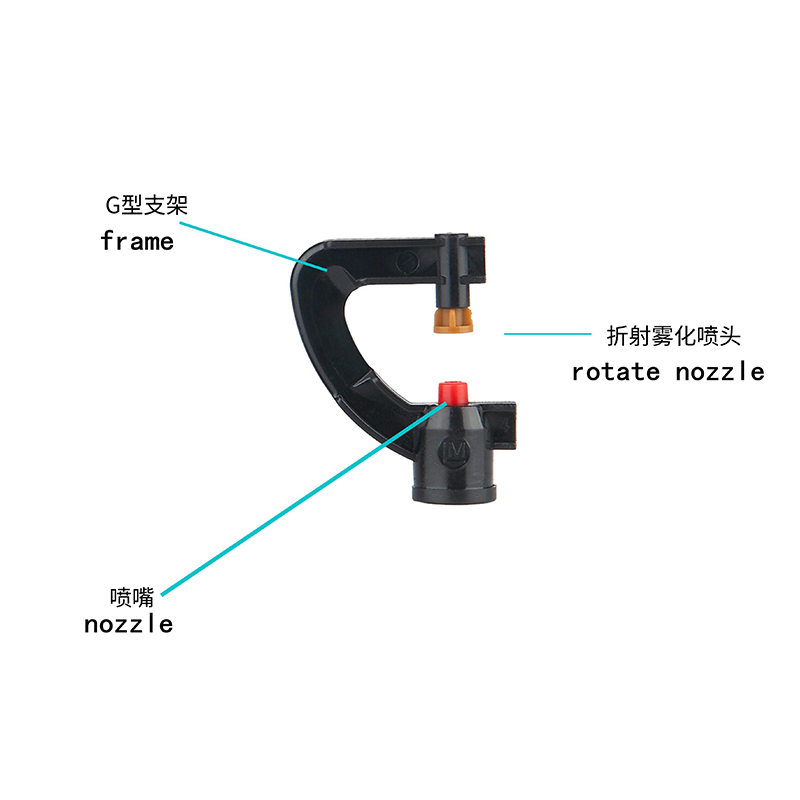

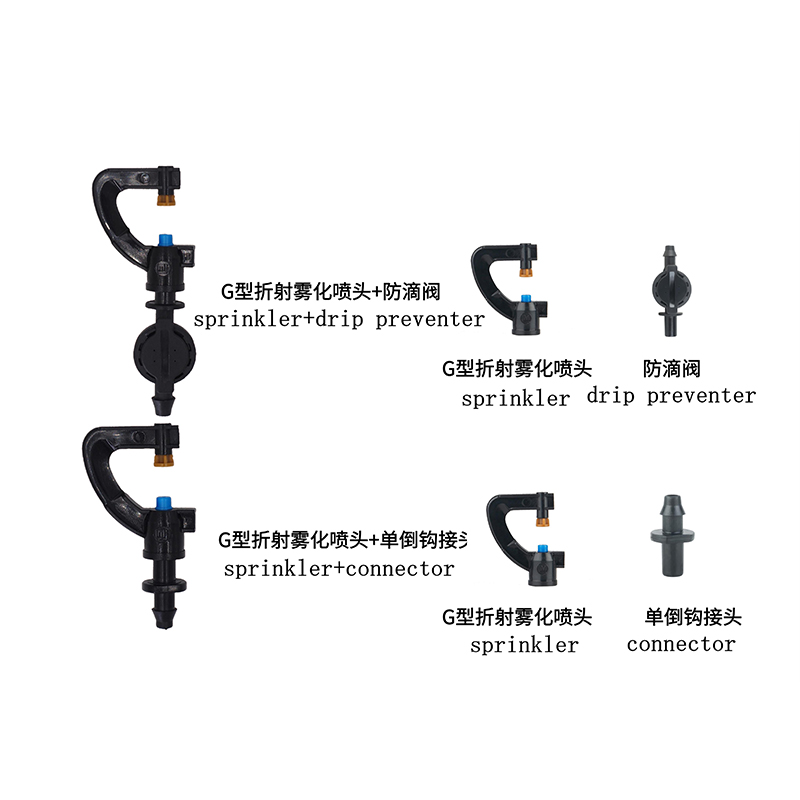

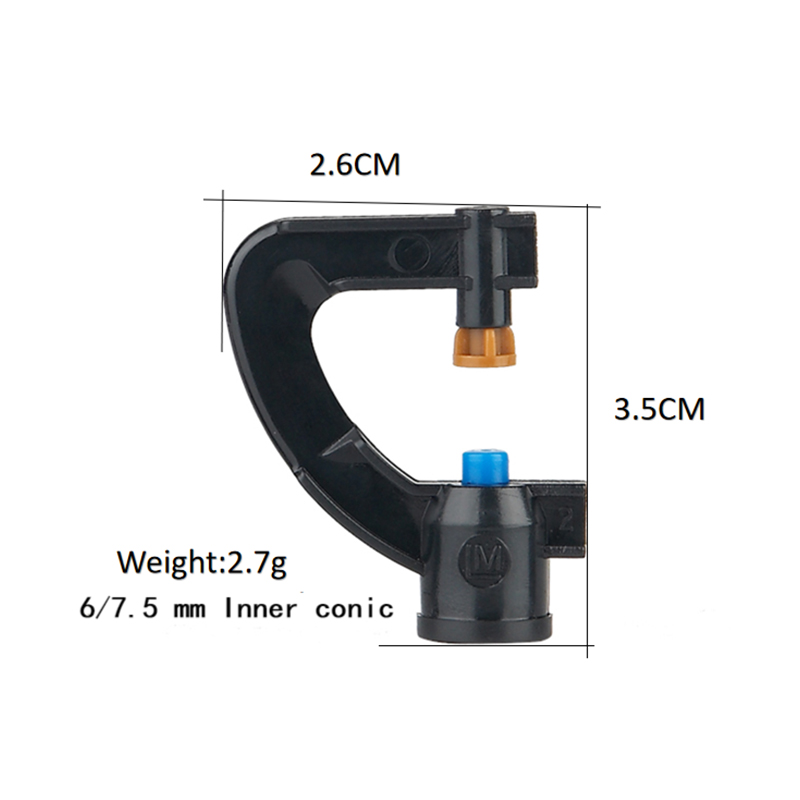

Product parts diagram | Accessory diagram | Dimensional drawing |
![]() |
![]() |
![]() |

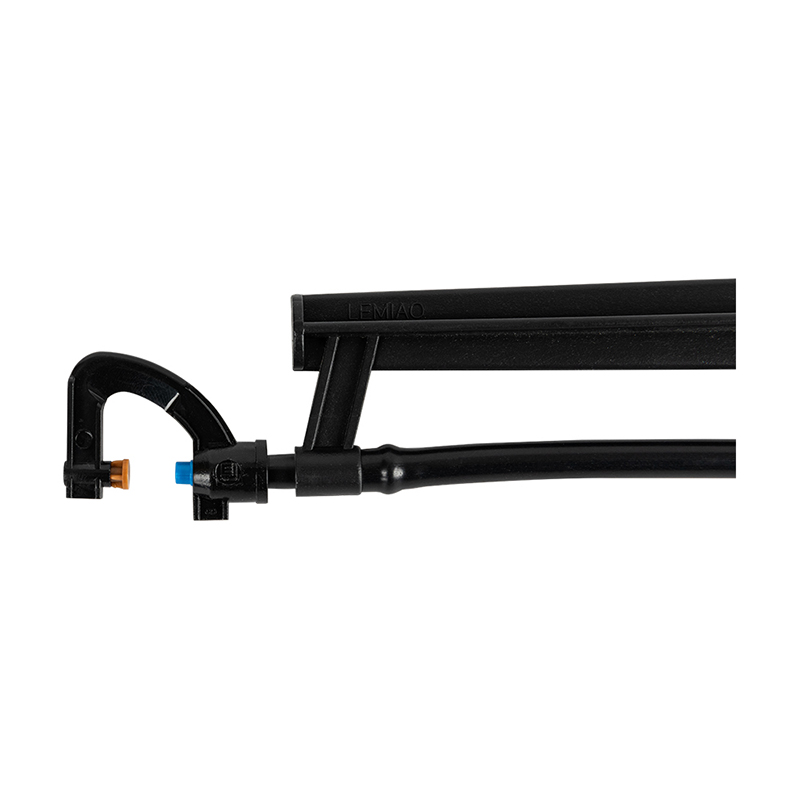

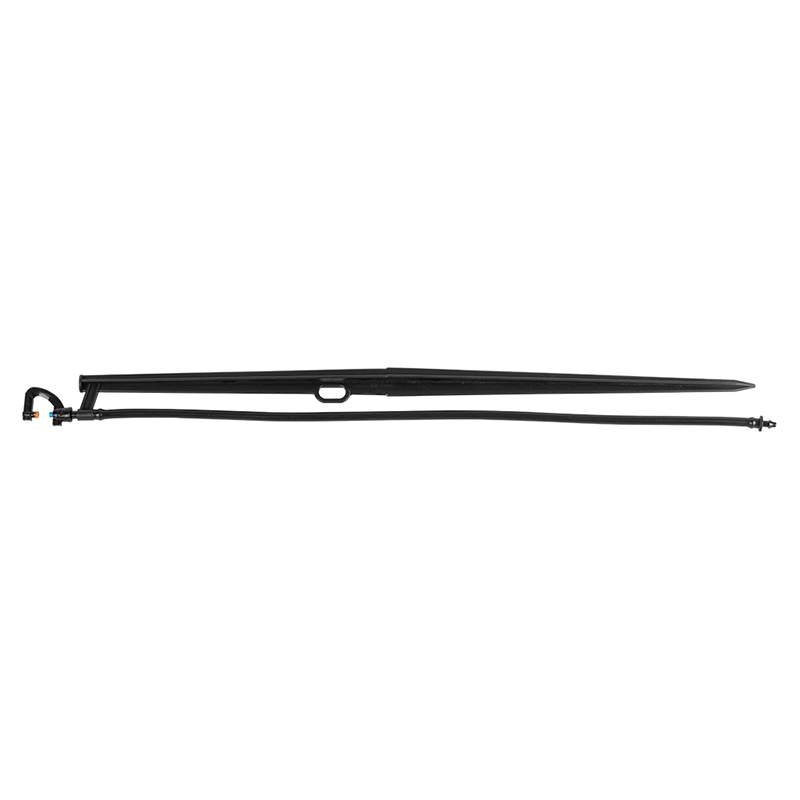

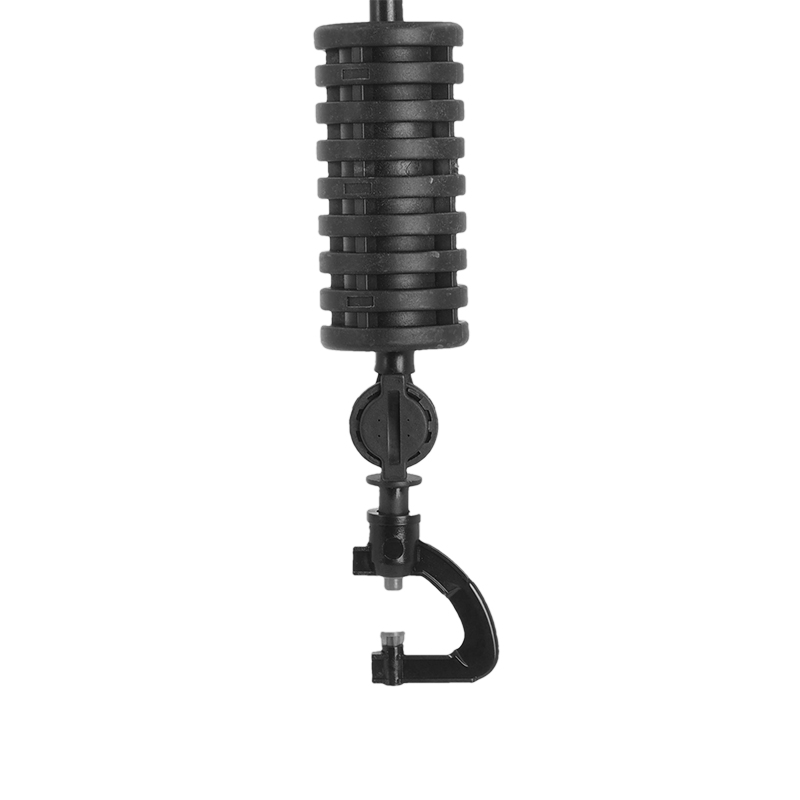

Upside down installation diagram | Floor plug installation diagram | Enlarged view of floor plug installation |
![]() |
![]() |
![]() |

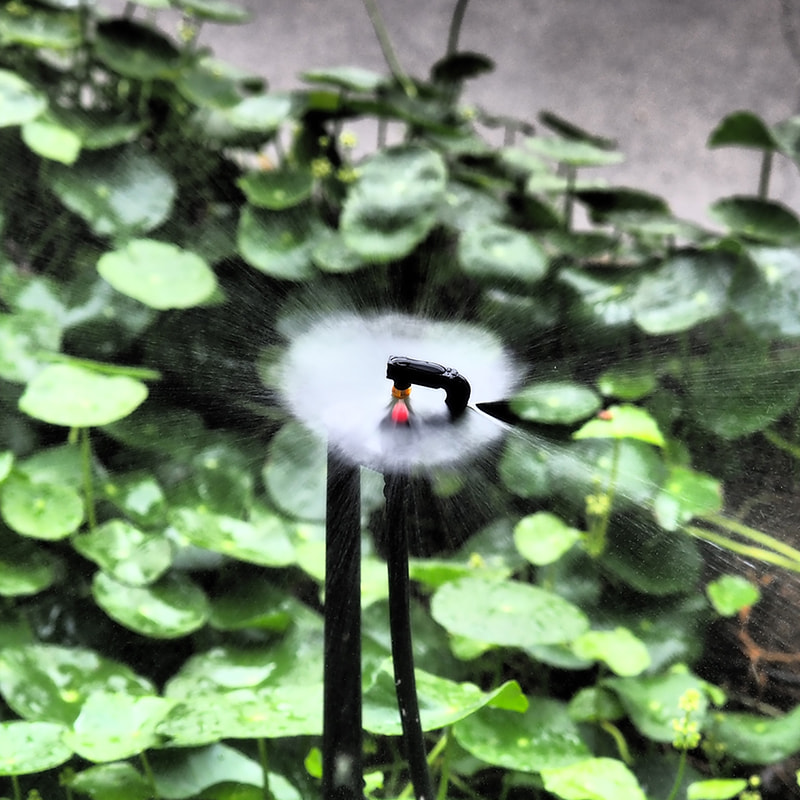

P6-G type refractive atomization | P6-G type refractive atomization | P6-G type refractive atomization |
Art No./ Nozzle color |
■1742 Blue |

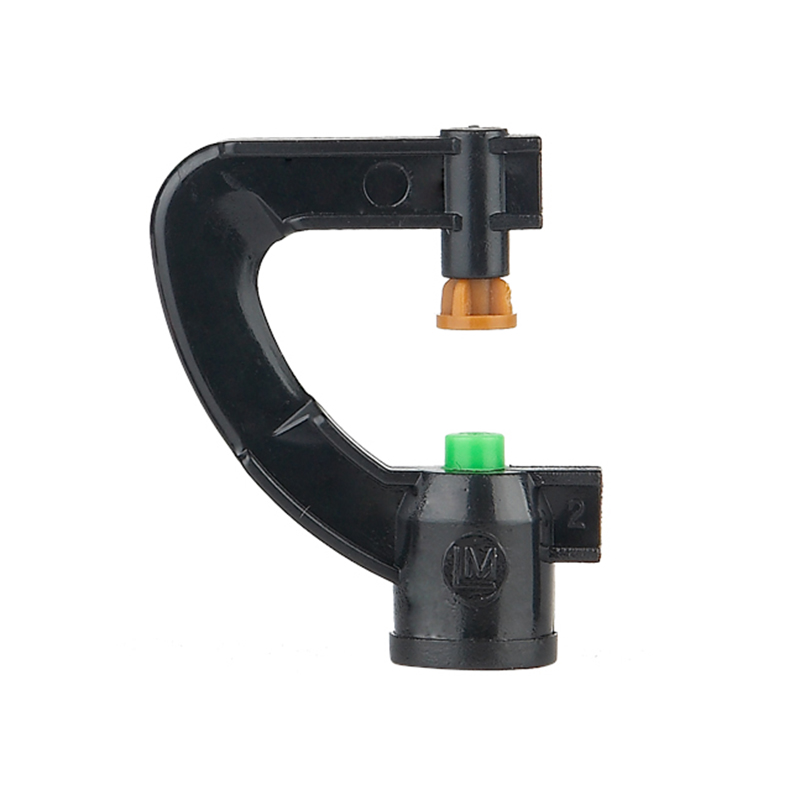

■1743 Green |

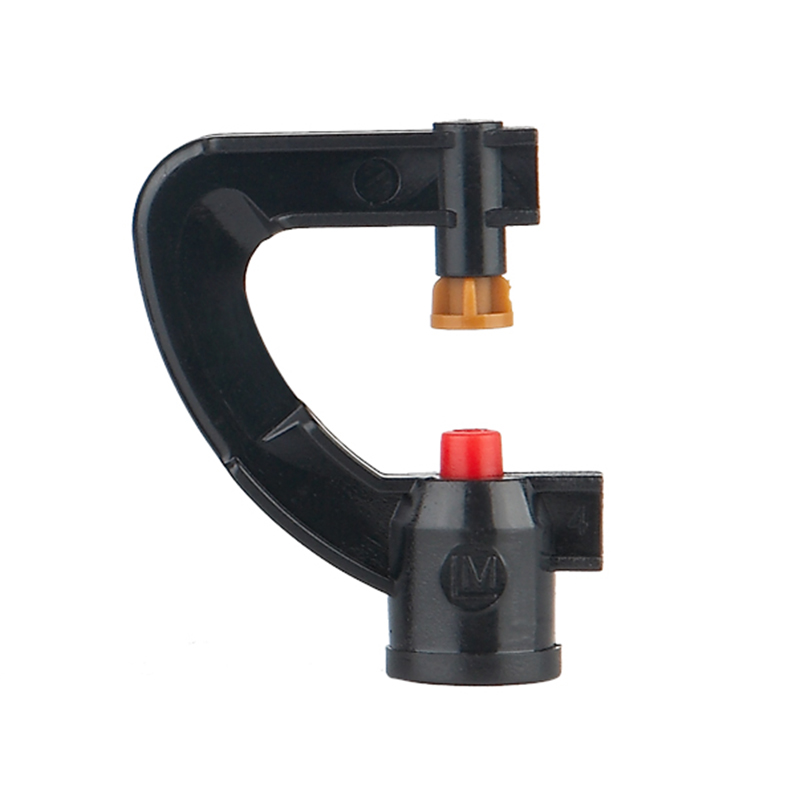

■1744 Red |

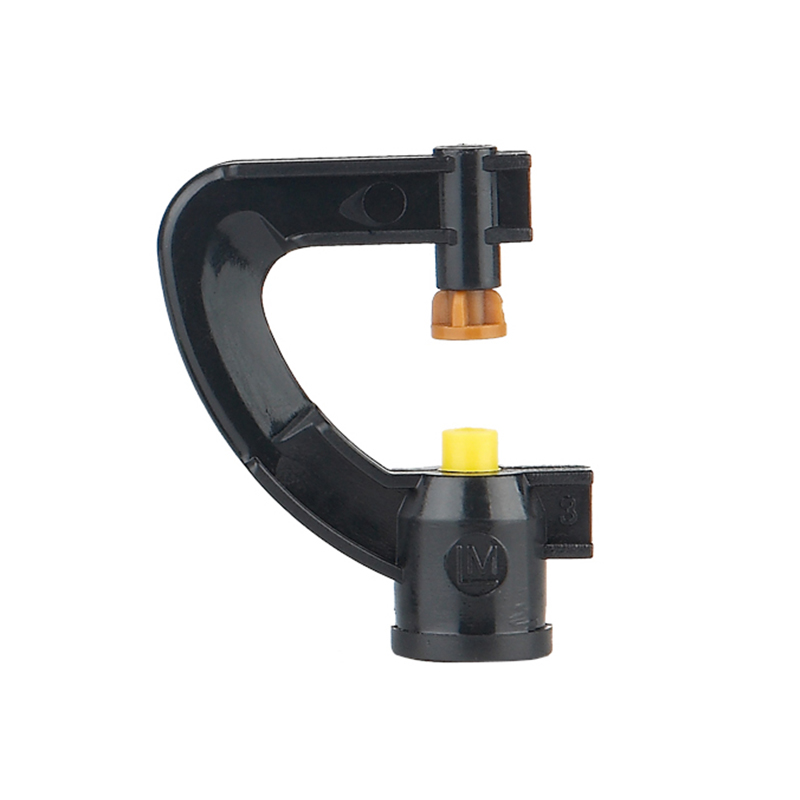

■1745 Yellow |

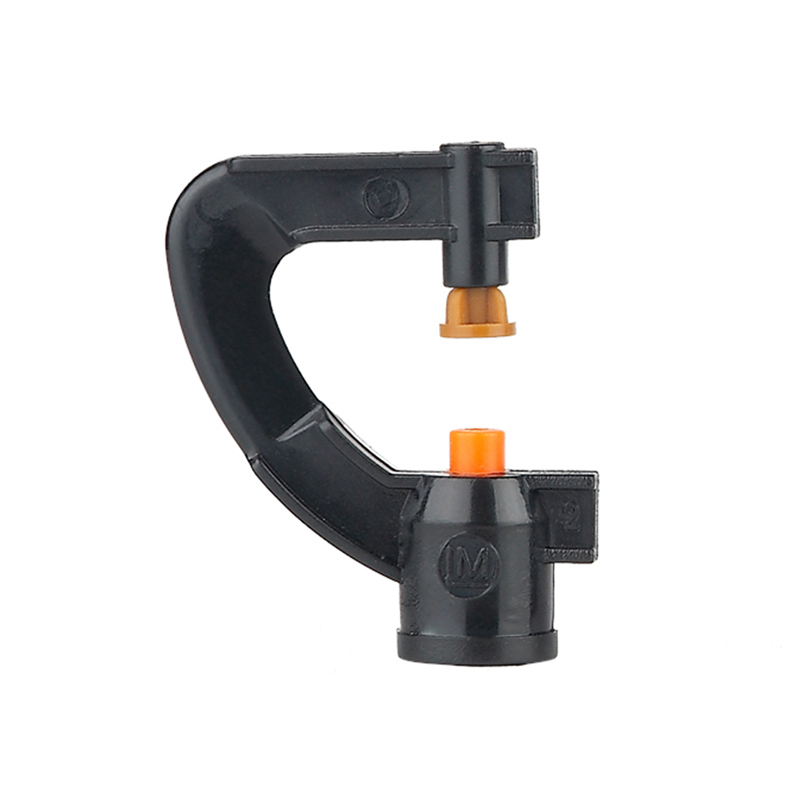

■1746 Brown |
■1747 Gray |
||||||
Water pressure (Mpa) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
150 |
37.8 |
1.1 |
53.9 |
1.2 |
72.8 |
1.3 |
90.0 |
1.3 |
115.8 |
1.4 |
147.9 |
1.5 |
200 |
45.0 |
1.1 |
64.4 |
1.2 |
86.1 |
1.3 |
105.6 |
1.3 |
136.7 |
1.4 |
175.0 |
1.5 |
250 |
51.1 |
1.2 |
73.3 |
1.3 |
97.8 |
1.4 |
116.1 |
1.4 |
150.0 |
1.5 |
197.5 |
1.6 |
300 |
55.6 |
1.2 |
79.4 |
1.3 |
107.2 |
1.4 |
125 |
1.4 |
162.5 |
1.5 |
221.7 |
1.6 |
Note: Tested in breezeless outdoors, 0.4m above the ground upright. We suggest that water pressure should above 0.2Mpa for better spray evenness.
