Interface |
6MM Inner conic |
|
QTY |
5000pcs/ctn |
|
G.W. |
15.5kg |
|
MEAS |
42*34*30CM |
![]() |
![]() |
![]() |

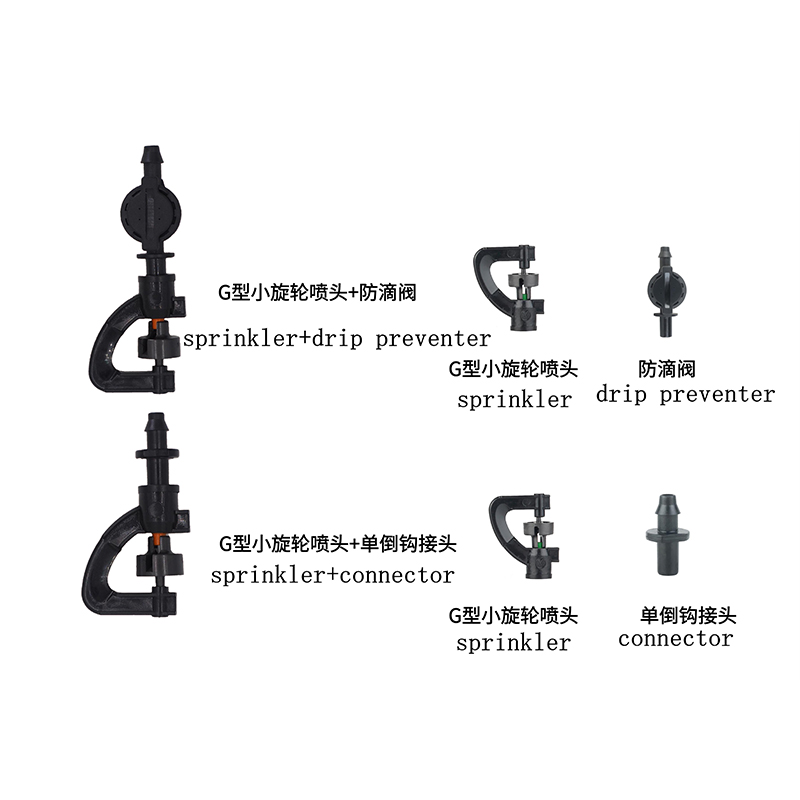

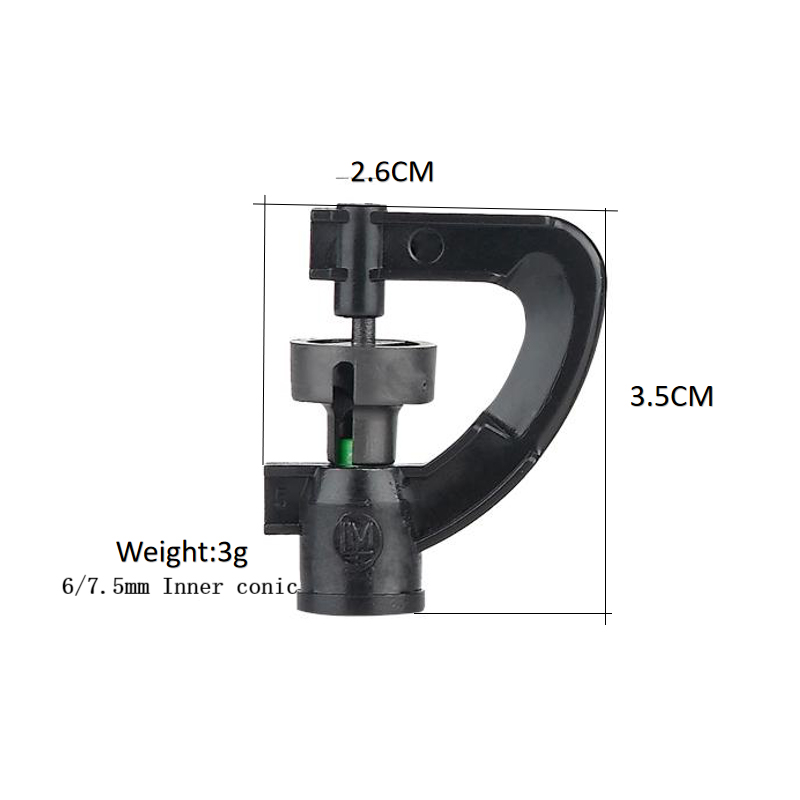

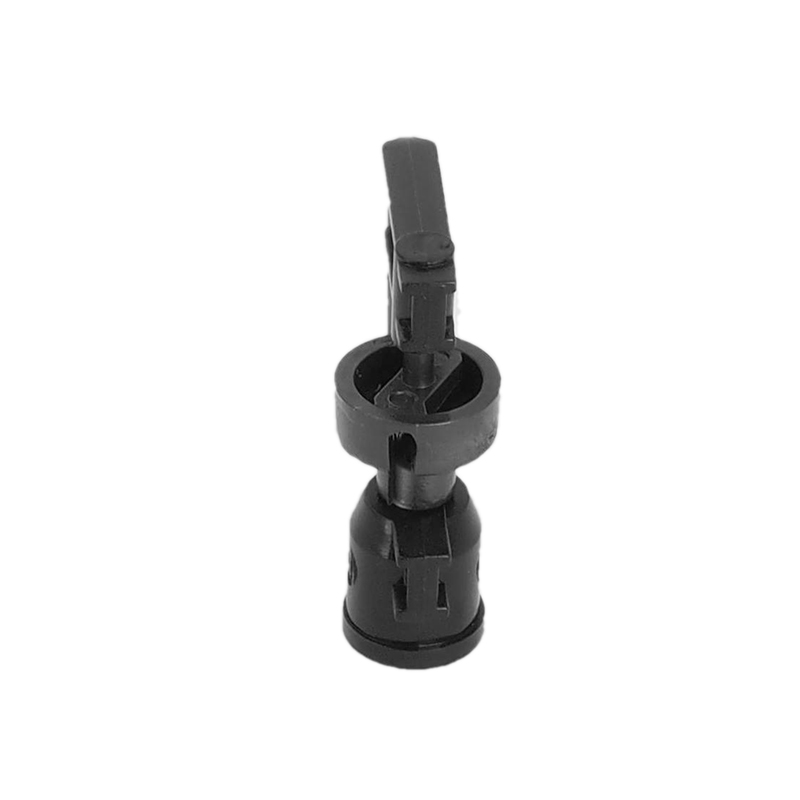

| Product parts diagram | Accessory diagram | Dimensional drawing |
![]() |
![]() |
![]() |

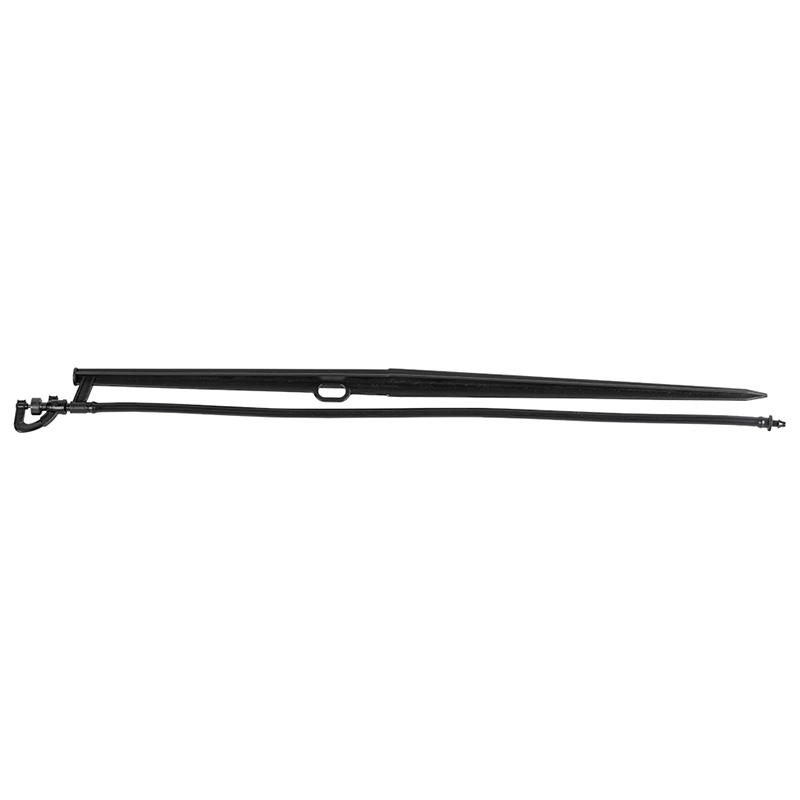

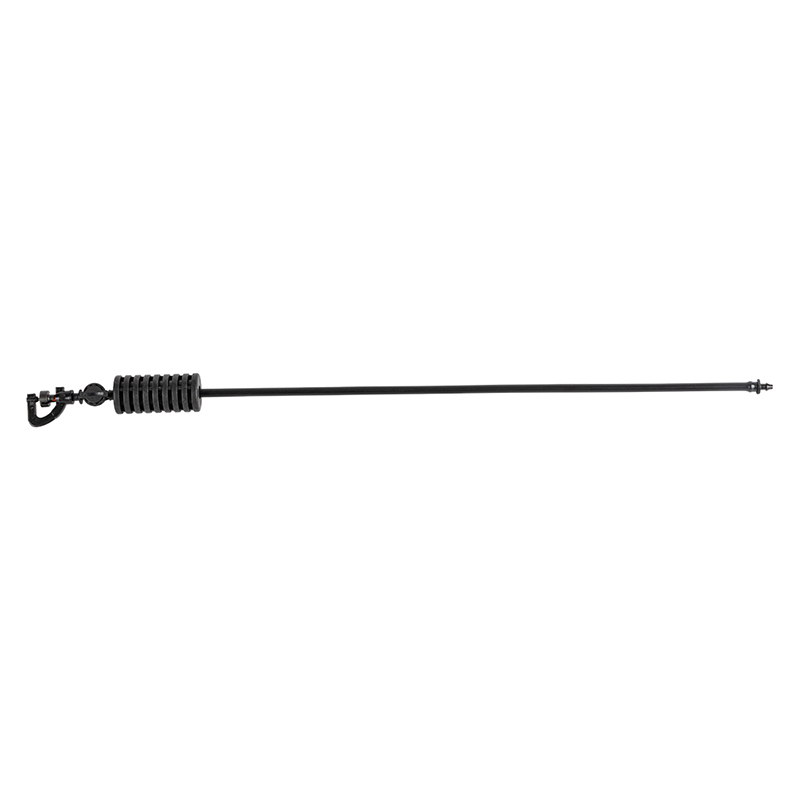

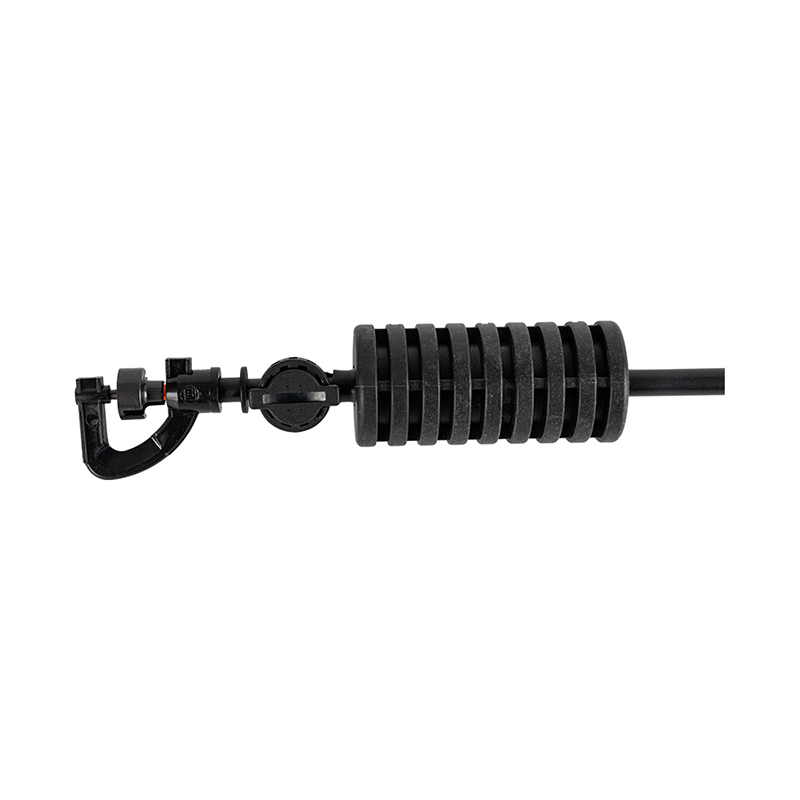

| Upside down installation diagram | Enlarged view of upside down installation | Floor plug installation diagram |
![]() |
![]() |
![]() |

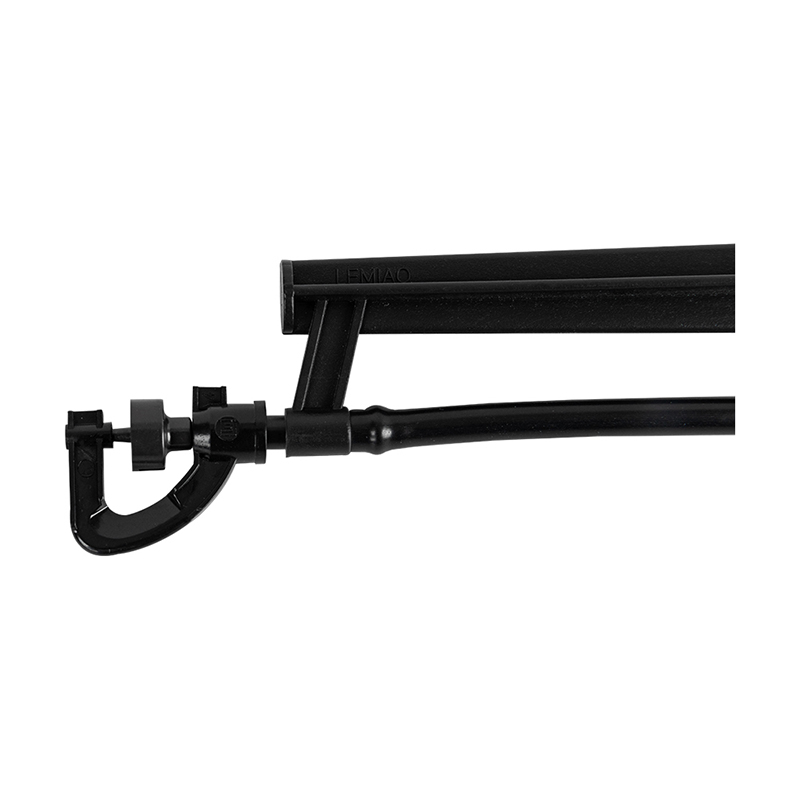

| Enlarged view of floor plug installation | Accessory diagram connecting 1/2 converter | Use the diagram |
|
Water pressure (Mpa) |
150kpa |
200kpa |
250kpa |
300kpa |
|||||
|
NO. |
Nozzie color |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
Flow (L/H) |
Radius (m) |
|
1702 |
■Blue |
37.8 |
2.5 |
45 |
2.6 |
51.0 |
2.7 |
55.6 |
2.7 |
|
1703 |
■Green |
53.9 |
2.5 |
64.4 |
2.7 |
73.3 |
2.7 |
79.4 |
2.8 |
|
1704 |
■Red |
72.8 |
2.5 |
86.1 |
2.7 |
97.8 |
2.8 |
107.2 |
3.0 |
|
1705 |
■Yellow |
90.0 |
2.5 |
105.6 |
2.8 |
116.1 |
3.0 |
125.0 |
3.2 |
|
1706 |
■Brown |
115.8 |
2.5 |
136.7 |
3.0 |
150.0 |
3.2 |
162.5 |
3.5 |
|
1707 |
■Gray |
147.9 |
2.5 |
175.0 |
3.0 |
197.5 |
3.2 |
221.7 |
3.5 |
Note: Tested in breezeless outdoors, 0.4m above the ground upright. We suggest that water pressure should above 0.2Mpa for better spray evenness.
